2013款 福特 致胜 双离合器波箱POWERSHIFT 6DCT450维修

浏览数:1215

车型:2013年福特 致胜 2.0T 双离合器波箱

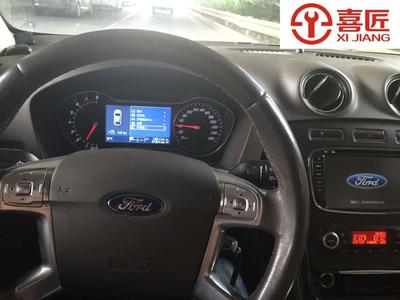

车辆内部:

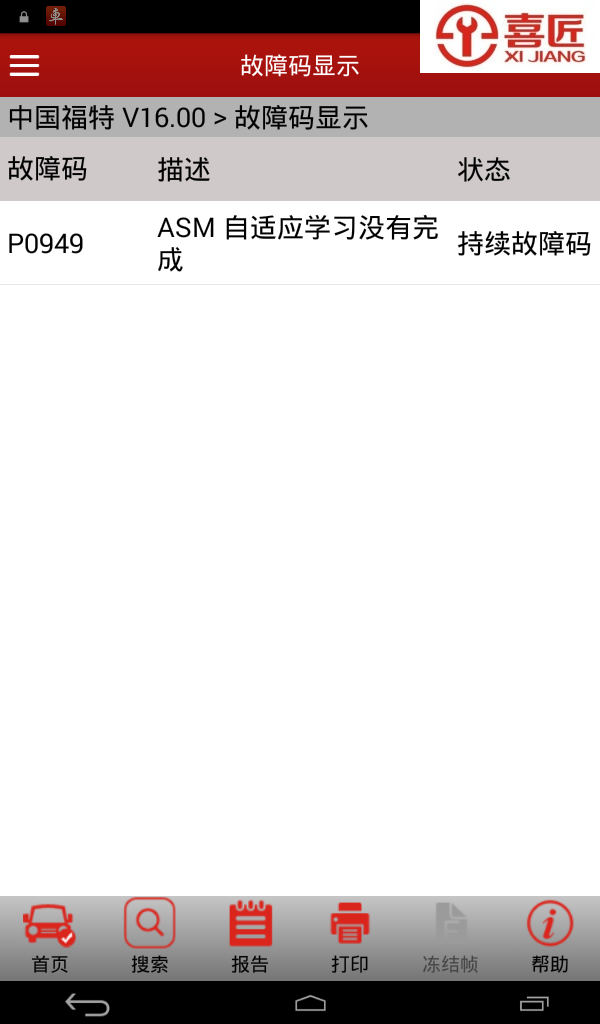

故障码:


故障现象:

挂D档车无反应,加大油门也没有变化。车间放一个晚上,第二天一早挂D档有反应。

车主反映:

加油无力,起步困难,无法上坡。


发动机故障码解析:

P0325 - Knock Sensor 1 Circuit Malfunction (Bank 1) See DTC P0326
P0326 - Knock Sensor 1 Circuit Range/ Performance (Bank 1) The knock sensor detects vibrations upon increase and decrease in engine rpm. The knock sensor generates a voltage based on this vibration. Should this voltage go outside a calibrated level a DTC will set.  Knock sensor circuit short to GND
Knock sensor circuit short to PWR
Knock sensor circuit open
Damaged knock sensor
Damaged PCM
A knock sensor voltage greater than 0.5V with the key ON and engine OFF indicates a hard fault.

P0330 - Knock Sensor 2 Circuit Malfunction (Bank 2) See DTC P0331
P0331 - Knock Sensor 2 Circuit Range/performance (Bank 2) The knock sensor detects vibration upon increase and decrease in engine rpm. The knock sensor generates a voltage based on this vibration. Should this voltage go outside a calibrated level a DTC will set.

Knock sensor circuit short to GND
Knock sensor circuit short to PWR
Damaged knock sensor
Damaged PCM
Knock sensor circuit open
A knock sensor voltage greater than 0.5V with the key ON and engine OFF indicates a hard fault.

未完待续
